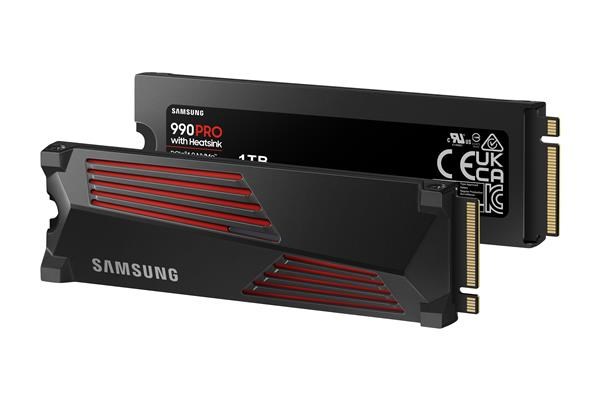

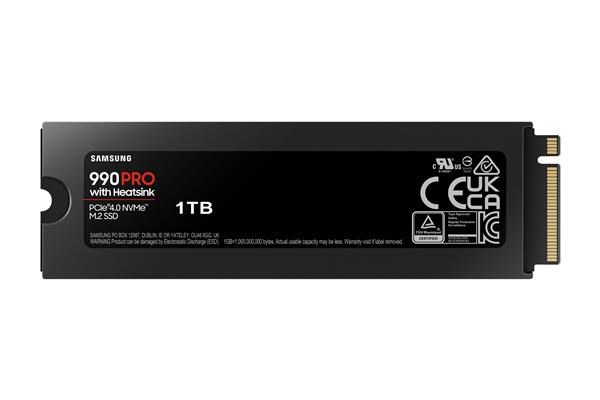

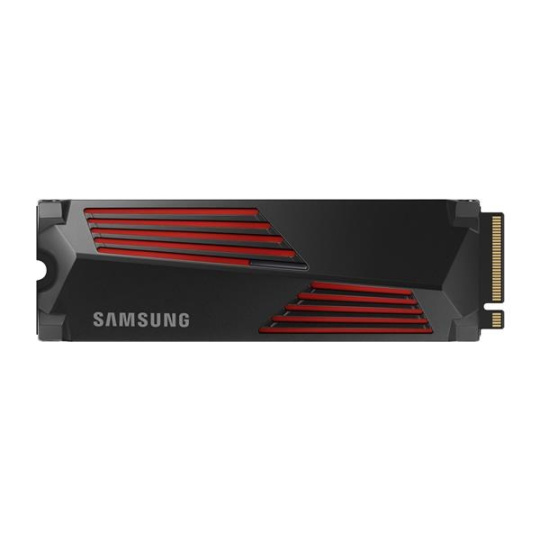

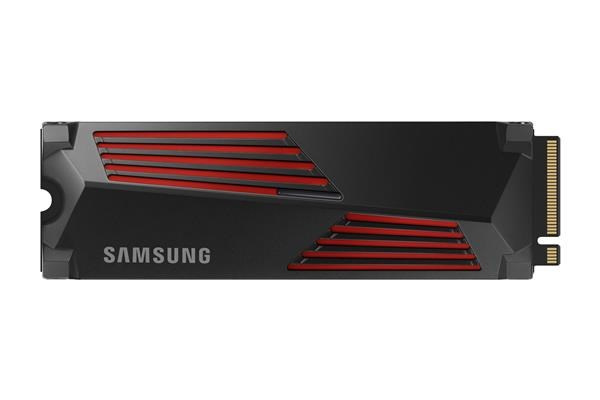

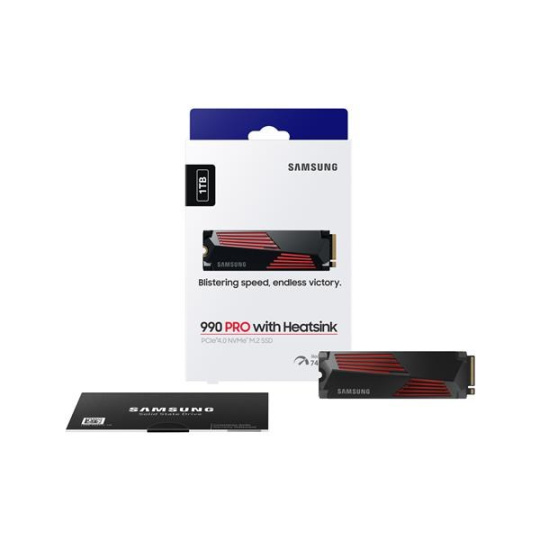

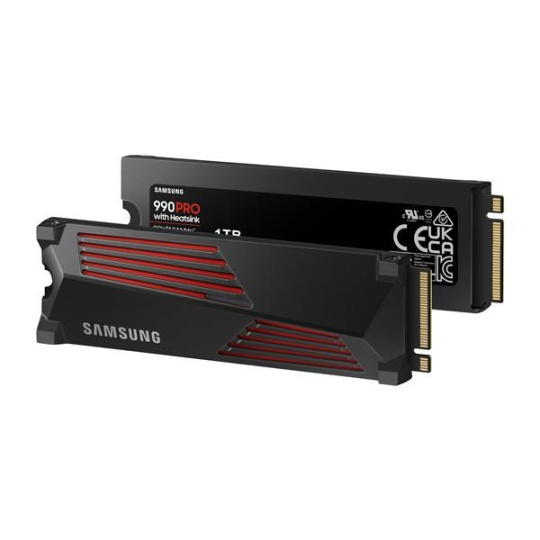

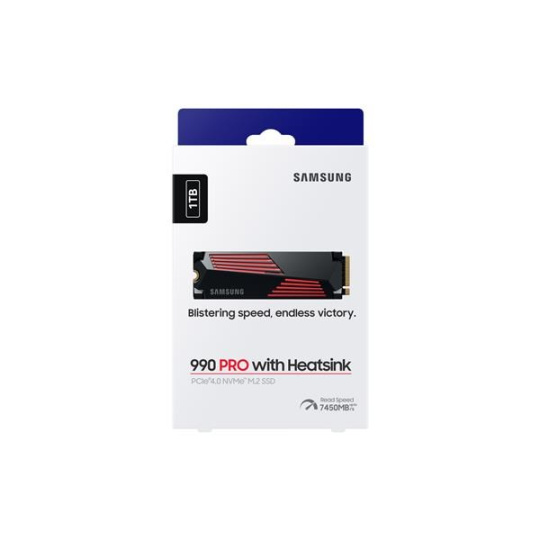

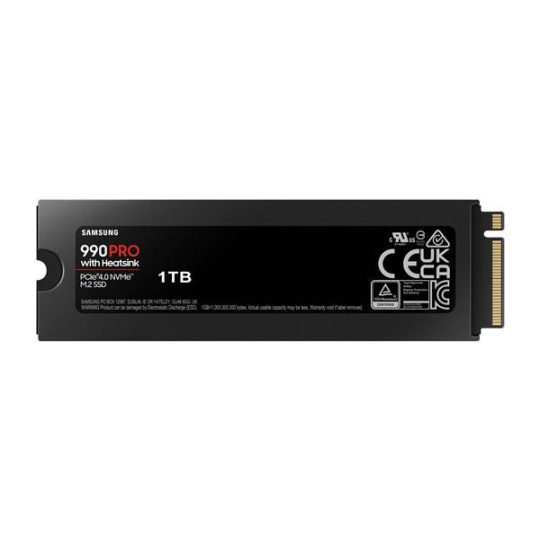

Samsung SSD 990 PRO with Heatsink 1000GB
Popis a parametry
Samsung SSD 990 PRO with Heatsink 1000GB
Specifikace
| General Feature | |
|---|---|
| Application | Client PCs, Game Consoles |
| Capacity | 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor | M.2 (2280) |
| Interface | PCIe Gen 4.0 x4, NVMe 2.0 |
| Dimension (WxHxD) | 80 x 24.3 x 8.2 mm (with heatsink) |
| Weight | Max 28.0g Weight |
| Storage Memory | Samsung V-NAND 3-bit MLC |
| Controller | Samsung in-house Controller |
| Cache Memory | Samsung 1GB Low Power DDR4 SDRAM |
| Special Feature | |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Performance | |
| Sequential Read | Up to 7,450 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 6,900 MB/s * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD32) | Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD32) | Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD1) | Up to 22,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD1) | Up to 80,000 IOPS * Performance may vary based on system hardware & configuration |
| Environment | |
| Average Power Consumption (system level) | *Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) | Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature | 0 - 70 °C Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Accessories | |
| Installation Kit | Not Available |
| Software | |
| Management SW | Magician Software for SSD management |
| Warranty | |
| Warranty | 5-Year Limited Warranty or 600 TBW Limited Warranty |
ParametryPorovnání
Formát
M.2
Typ disku
SSD
Rozhraní
NVMe
Velikost bufferu (v MB)
nespecifikováno
Typ paměti SSD
TLC
Použití disku
Pro PC
Použití disku
Pro Notebooky
Chladič disku
Ano
HDD Kapacita (GB)
1000
SSD Kapacita (GB)
1000
