ZALMAN zdroj WATTTERA ZM1200-EBTII - 1200W 80+ Gold, 13,5cm fan, modular
Popis a parametry
ZALMAN zdroj WATTTERA ZM1200-EBTII - 1200W 80+ Gold, 13,5cm fan, modular
| Model | WATTTERA [1200W] ZM1200-EBTII 80PLUS GOLD Power Supply |
|---|---|
| Efficiency | Max 91% @ 230 VAC, Typical Load |
| Dimensions | 160 (L) x 150 (W) x 86 (H) mm |
| MTBF | 100,000 Hours |
| Weight | 3.48 kg |
| Operating Temperature | 0~40 C |
| PFC | Active PFC(>0.9) |
| Regulatory | UL, FCC, CB, CE, KC, EAC, RoHS |
| Type | Intel ATX 12V ver.2.31 |
| Protection | OCP/ OVP/ OPP/ OTP/ UVP/ SCP |
| Input Voltage | 115- 240 VAC |
| Input Current | 12-6A |
| Input Frequency | 50-60Hz |
| Fan Size | 135mm |
| Fan Bearing | Two Ball Bearing |

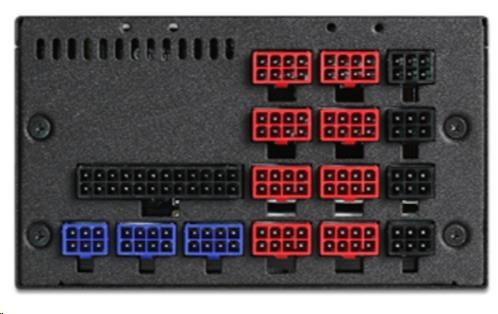

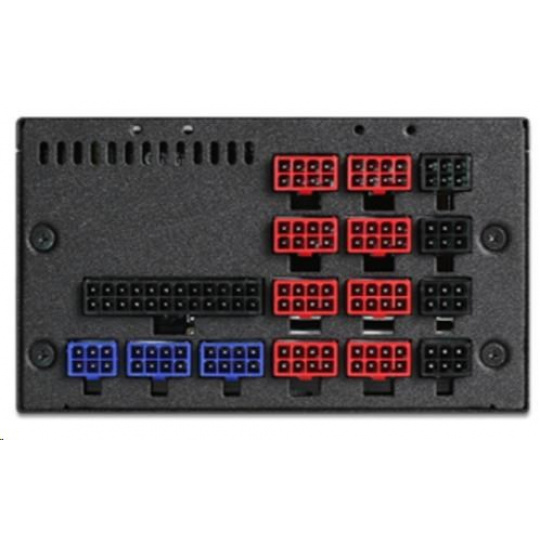

| Cables (Connector) | Mainboard (Sense Connector 1ea) Cable X 1 EPS Cable X 2 PCI Express Cable X 8 IDE (Connector 3ea) + FDD (Connector 1ea) Cable X 1 S-ATA Cable X 3 |
| 80 PLUS | Gold |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
FDD
Konektory pro základní desku
EPS 8-pin
Vlastnosti zdroje
Modulární kabeláž
Efektivita zdroje
80 Plus Gold
Modulární kabeláž
Ano
Podsvícení
Bez podsvícení
Výkon zdroje (W)
1200
ZALMAN zdroj WATTTERA ZM1200-EBTII - 1200W 80+ Gold, 13,5cm fan, modular
