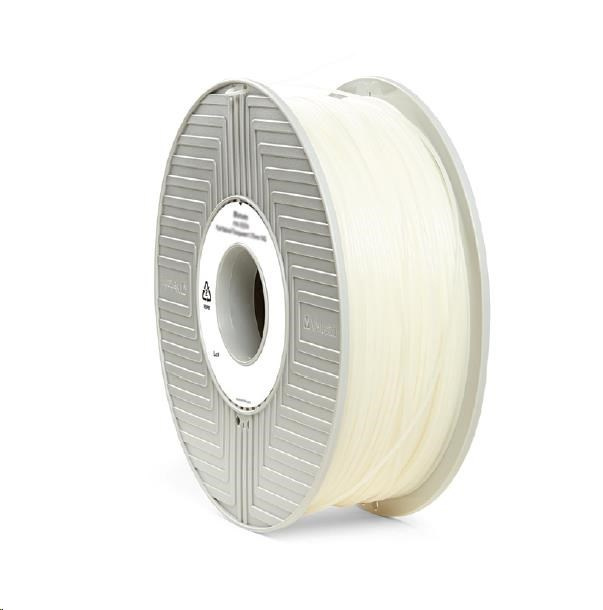

VERBATIM 3D Printer Filament PMMA DURABIO 2.85mm, 60m, 500g transparent
Popis a parametry
VERBATIM 3D Printer Filament PMMA DURABIO 2.85mm, 60m, 500g transparent
TECHNICAL SPECIFICATIONS
| Diameter | 2.85 mm ± 0.10 mm |
| Roundness | >95% |
| RAL | N/A |
| Weight | 500 g |
| Color | transparent |
| MATERIAL PROPERTIES | |
| Density | 1.31 g/cm3 (Test method: ISO 1183) |
| MVR 230°C/2.16 kg | 10 cm3/10min (ISO 1133) |
| MFR 230°C/2.16 kg | 13 gr/10 min (Test method: ISO 1133) |
| Elongation at break | 130% (Test method: ISO 527) |
| Tensile strength | 64 MPa (Test method: ISO 527) |
| Tensile modulus | 2300MPa (Test method: ISO 527) |
| Flexural modulus | 2100MPa (Test method: ISO 178) |
| Flexural strength | 94 MPa (Test method: ISO 178) |
| Impact strength - Charpy method 23°C | 9 kJ/m2 (Test method: ISO 179) |
| Moisture absorption | 0.2% (Test method: MCC Method) |
| Coefficient of linear thermal expansion (-20~80°C) | 7.3E-05 (Test method: ISO 11359-2) |
| Heat deflection temperature 1.80 MPa | 82°C (Test metod: ISO 75-1) |
| Transparency | 2% (Test method: ISO 13468) |
| RECOMMENDED PRINTER SET UP | |
| Extrusion temperature | 225 - 245°C |
| Melting temperature | 235°C |
| Bed temperature | 85°C |
| Printing speed | 50 mm/s |
| Fan speed (can be changed to 0% is the model is warping) | 10% |
.
ParametryPorovnání
Barva
Průhledná
Typ materiálu
PMMA
Průměr struny
2,85 mm
Pracovní teplota
225 - 245°C
Balení
500 gramů
VERBATIM 3D Printer Filament PMMA DURABIO 2.85mm, 60m, 500g transparent
