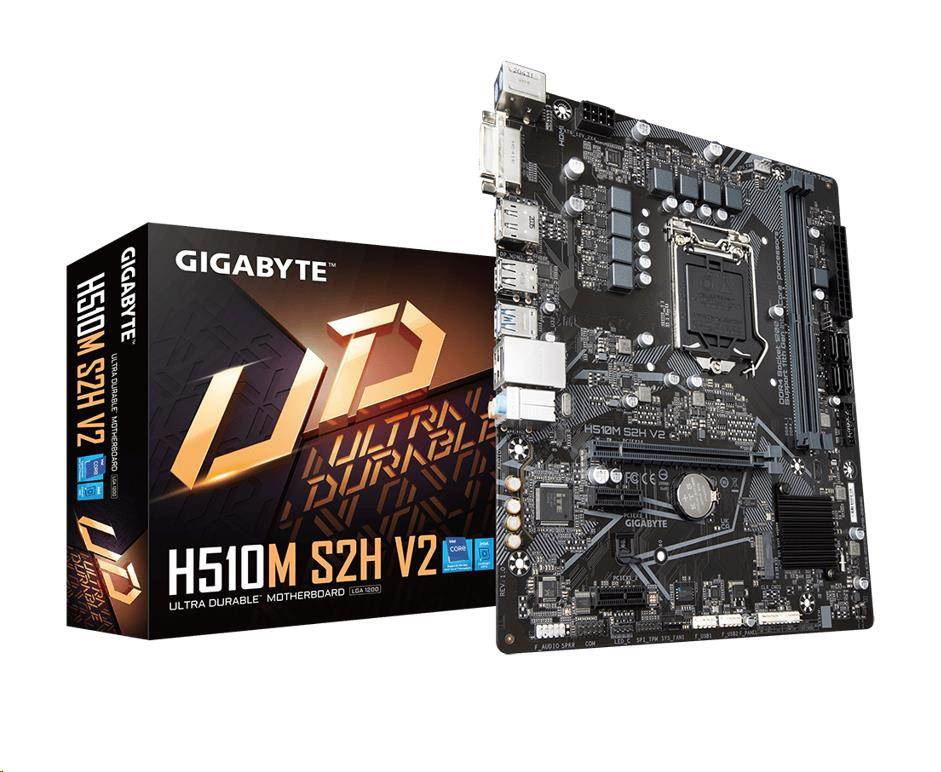

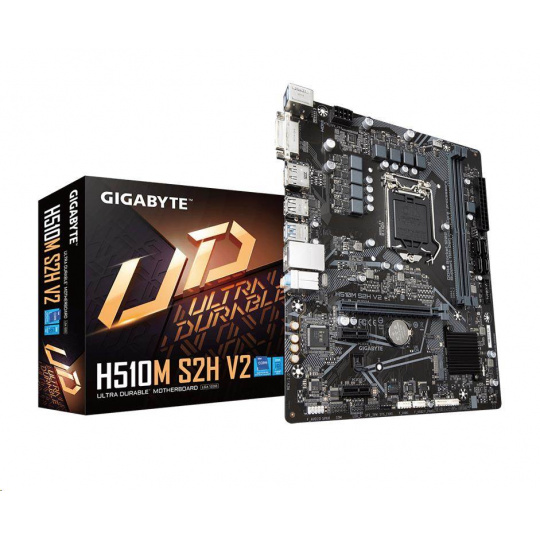

GIGABYTE MB Sc LGA1200 H510M S2H V2, Intel H510, 2xDDR4, 1xDP, 1xHDMI, 1xDVI, mATX

Pro procesory:Intel; Socket (patice):Socket 1200; Chipset:Intel H510, Intel; Počet paměťových slotů:2; Technologie paměti RAM:DDR4; Formát základní desky:micro ATX; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x1:2; USB 2:8; USB 3:4; SATA 3:4; PCI:0; M.2 slot:0; 3.5mm Jack; LAN:1Gbit/s; VGA:0; DVI:1; HDMI:1; DisplayPort:1.... více
Běžná cena: 2 506  (-16%)
1 735.54 Kč bez DPH
Skladem u dodavatele
2 100 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 524420
Kód dod.: H510M S2H V2
EAN: 4719331823757
Záruka: 36 Měsíc(ů)
Výrobce: Gigabyte
Popis a parametry

GIGABYTE MB Sc LGA1200 H510M S2H V2, Intel H510, 2xDDR4, 1xDP, 1xHDMI, 1xDVI, mATX

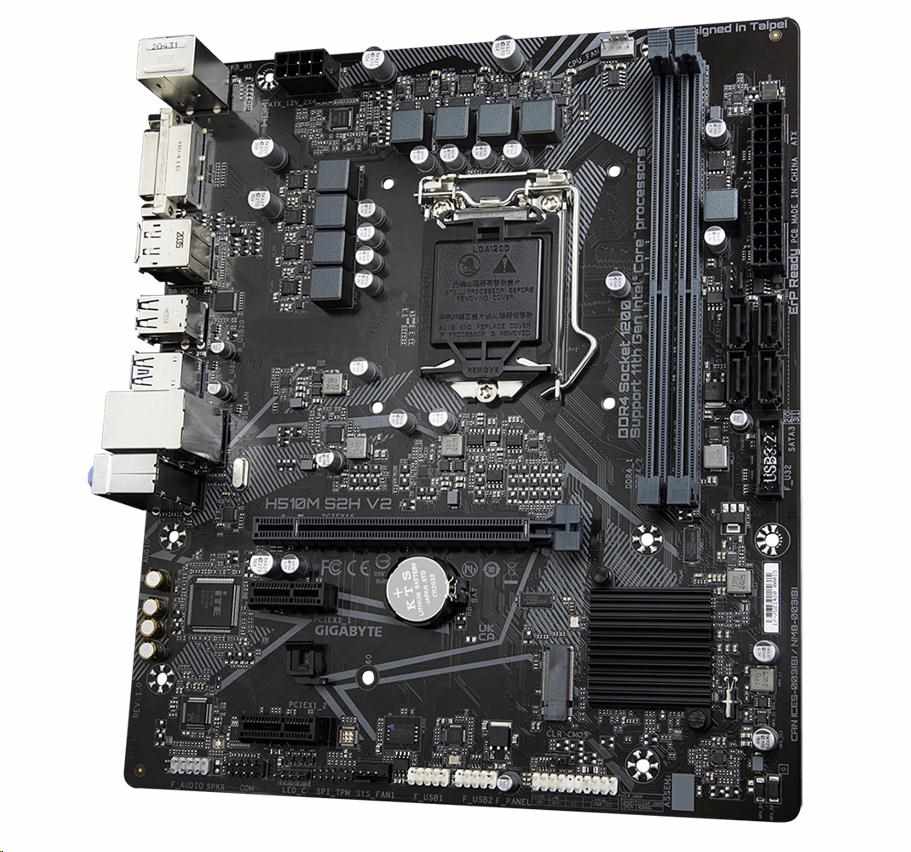

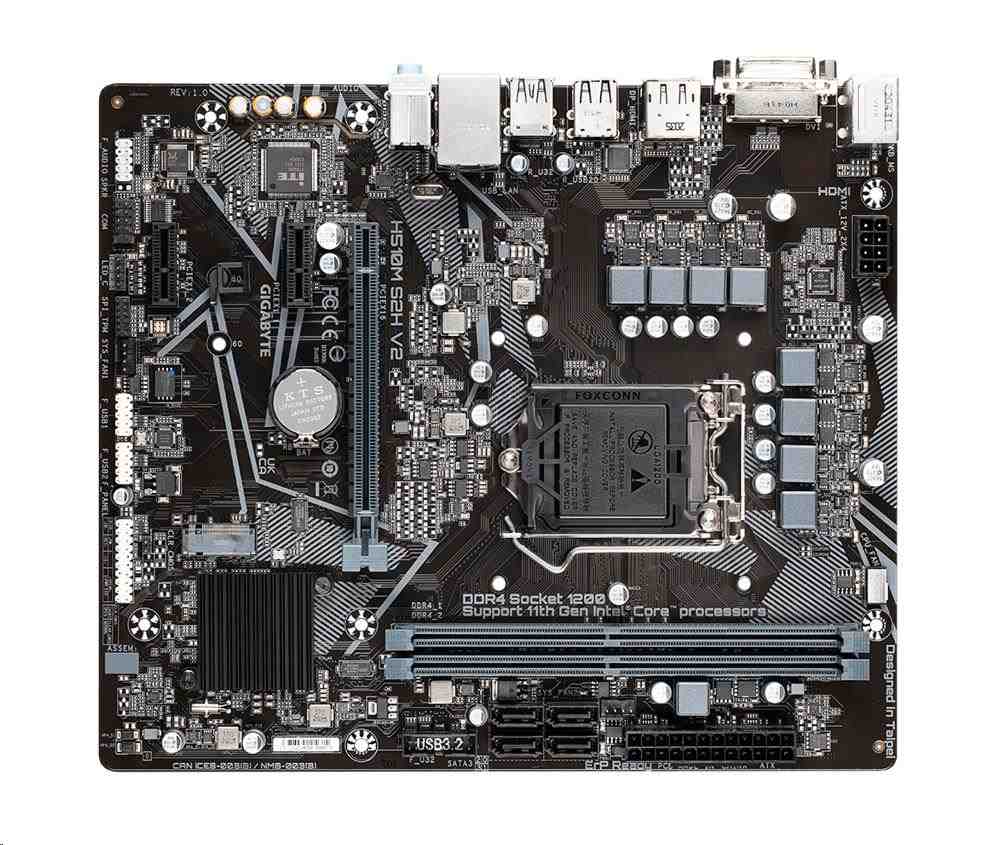

H510M S2H V2 (rev. 1.0)

Intel® H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek 8118 Gaming LAN, 3 Display Interfaces Support , Anti-Sulfur Resistor, Smart Fan 6

  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • 3 Display Interfaces Support
  • High Quality Audio Capacitors and Audio Noise
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

*Actual support may vary by CPU.

CPU

LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)

Chipset

Intel® H510 Express Chipset

Memory

11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Support for up to 2 displays at the same time
(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

Realtek® GbE LAN chip (1 Gbit/100 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 3.0 standard.)

Storage Interface

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
* The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.
4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB

Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x DVI-D port
1 x DisplayPorts
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 21.0cm

.
ParametryPorovnání
Technologie paměti RAM
DDR4
Socket (patice)
Socket 1200
Integrovaná grafická karta
Ano (CPU)
Chipset
Intel H510
PCI Express x16
1
Podpora RAID
Bez RAID podpory
COM port
Ano
LPT port
Ne
Další rozhraní
M.2
Formát základní desky
micro ATX
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
Intel
Počet paměťových slotů
2
DisplayPort
1
TPM
Ano
USB 2
8
USB 3
4
PCI
0
M.2 slot
0
SATA 3
4
VGA
0
DVI
1
HDMI
1
Led Header
Ano
PCI Express x1
2
LAN
1Gbit/s
